MDD-200 IRT vs Drago GT, Maya & Calmer — spec for spec.
True Row Independence
The MDD-200 IRT is a 3rd-generation row-independent head designed to harvest any direction in any row spacing. A single head handles 15", 20", 30" and 36" spacings simultaneously — without reconfiguration.
Fixed Row Spacing Per Model
Drago GT models are configured for a single fixed row spacing per unit (20"–40" depending on model). Changing row width requires a different model entirely.
Row independence isn't a convenience feature — it increases your efficiency. The narrow & shallow snouts knock down less stalks when cornering, on terraces or if there is wind damage. Being able to cut a path any direction you want leads to more production every pass.
IRT Intermeshing Replaceable Teeth

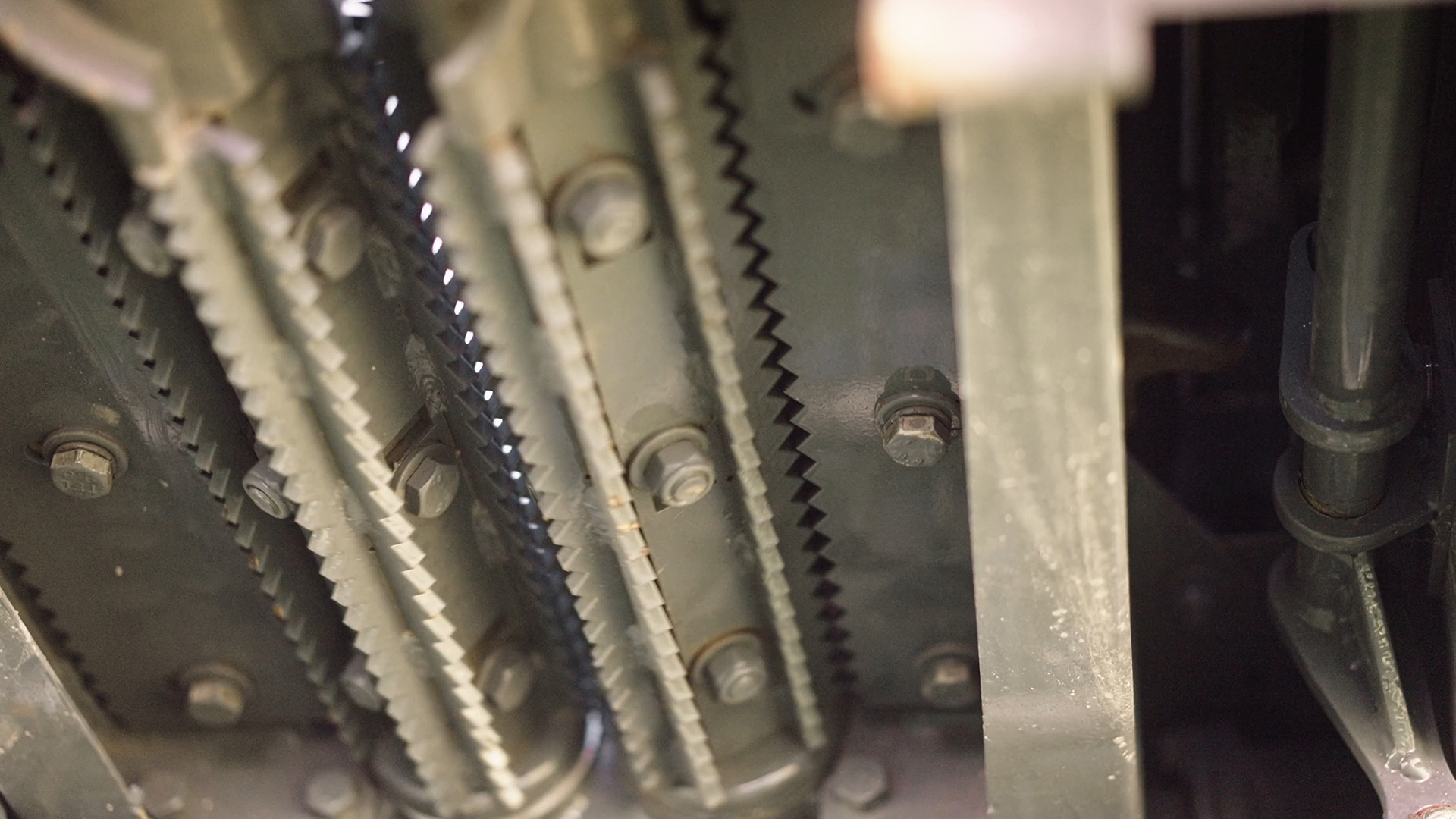

Each row unit carries IRT rolls with 8 opposing ¼"-thick hardened serrated blades per shaft, bolted on for field replacement. The intermeshing serrated design crimps stalks multiple times per pass — aggressively pulling the plant down while reducing MOG entering the combine.
Aftermarket Replacement Rolls for OEM Heads
Calmer is a "Residue Specialists" brand that produces aftermarket replacement stalk rolls designed to upgrade OEM corn heads. Calmer does not manufacture a complete corn head — their rolls are installed into existing John Deere, Case IH, or other branded heads.
Calmer's stalk rolls are a well-regarded upgrade for OEM heads but the underlying head retains all fixed-row limitations of whatever brand it's bolted to. The Mainero MDD-200 IRT delivers purpose-built intermeshing roll geometry from the ground up — not adapted onto a platform designed around different constraints.
Stainless Steel with Pivoting Tips

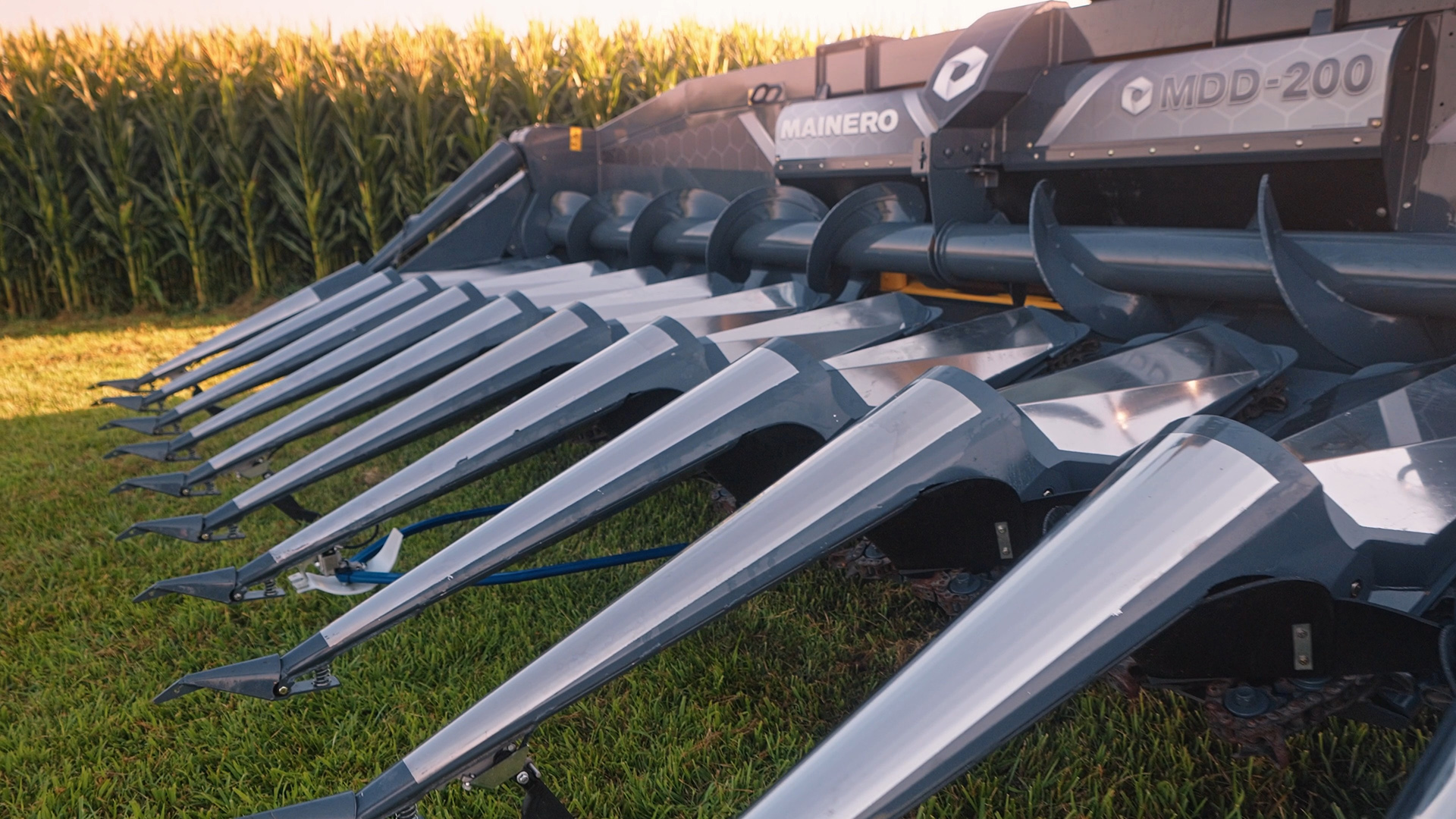

MDD-200 snouts and shields have a stainless-steel treatment, providing corrosion-free use for the life of the machine. The patented open-side slim-width design eases stalks into gathering chains in any row spacing or extreme condition.
Poly Bonnet & Snouts
Maya corn heads use poly bonnet and poly snouts. Maya recommends operating at a flat 15–18° angle to improve stalk pick-up. Down corn performance requires an optional add-on attachment.
Stainless steel treatment on the snouts resists corrosion and eliminates static electricity during operation. This improves crop flow into the row unit.
Patented 11-Lug Timed Chain Design

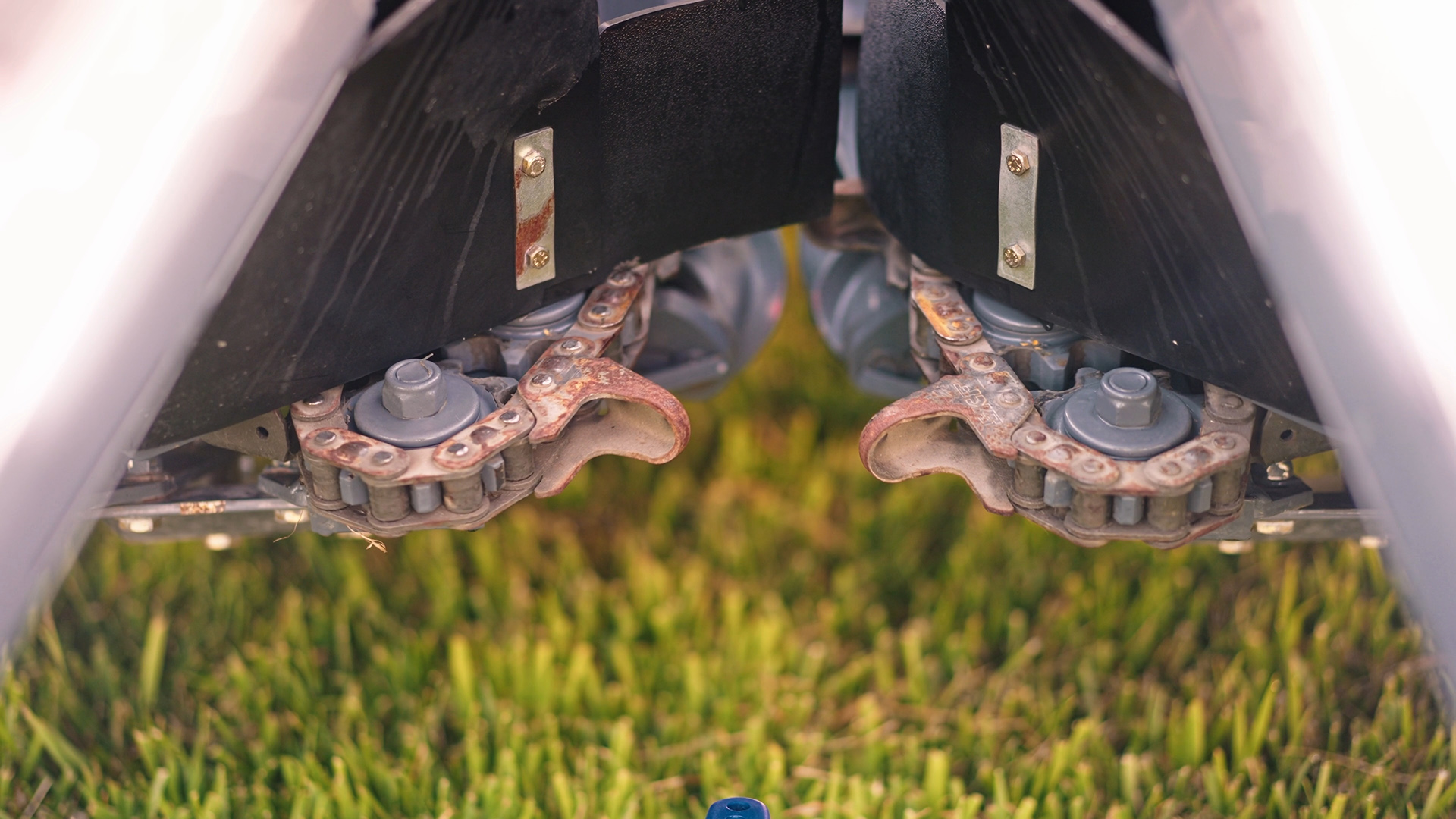

The MDD-200 uses CA2801-type gathering chains with 66 pitches and a patented offset sprocket design that widens the stalk entry opening. A normal unit has a 4-inch stalk entry opening, the MDD-200 has an 11-inch opening. The 11 conveying lugs can be timed in pairs or offset, whichever you prefer for the condition.
Overlapping Chains with Large Idler Sprockets
Drago GT gathering chains feature an aggressive overlapping design with large idler sprockets positioned ahead of knife rollers to pre-position stalks. No published patented timed-lug entry system.
Gathering chain timing directly controls stalk feed uniformity. The Mainero patented 11-lug timed pair design ensures that each pair of lugs manages exactly one stalk — preventing bunching and uneven feeding that reduces roller efficiency and increases MOG in high-speed conditions.
Hydraulic Auto-Adjust with Cab Indicator

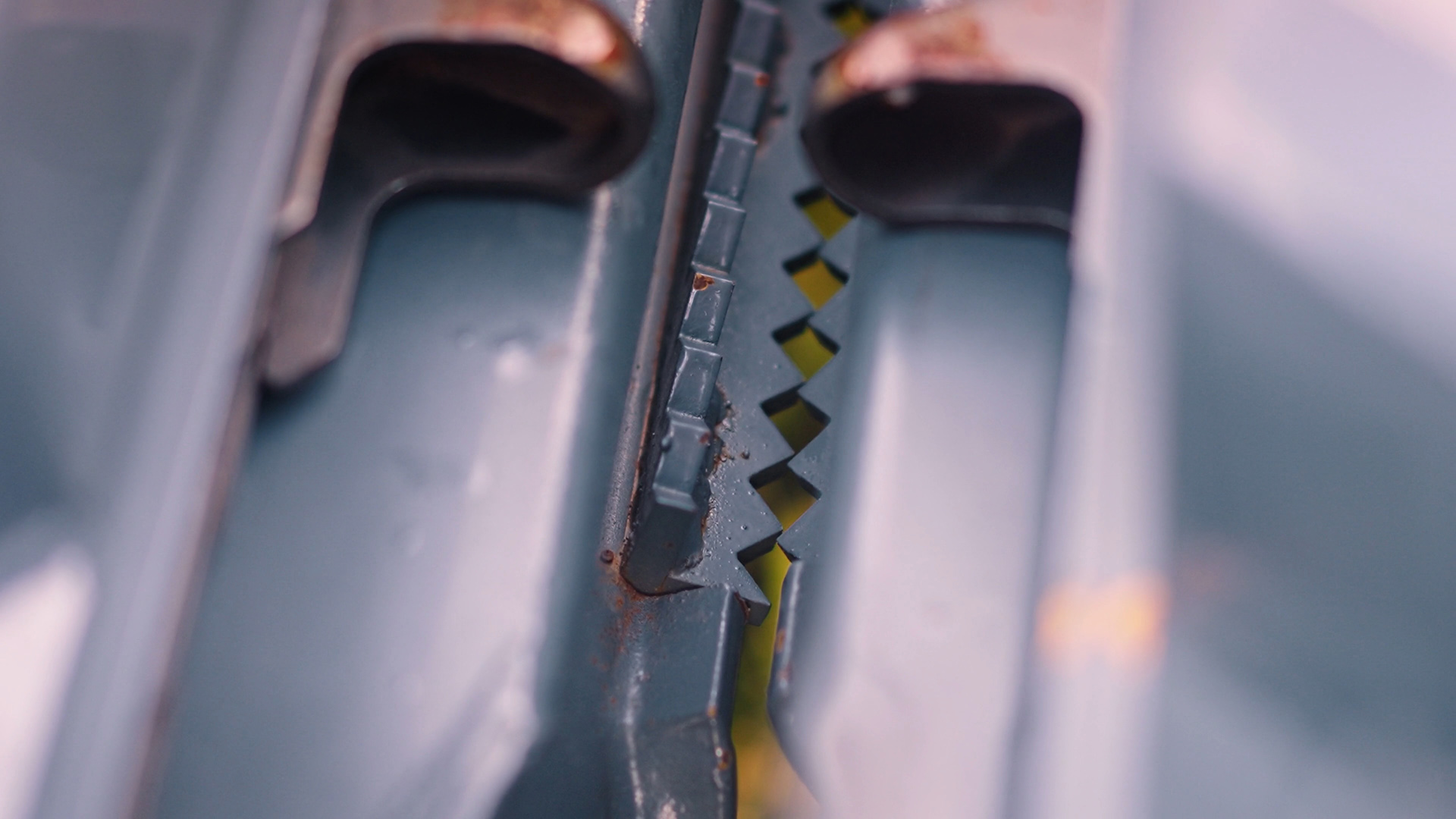

MDD-200 deck plates are hydraulically adjustable as standard equipment. A position indicator clearly shows plate gap to the combine operator from the cab — no stopping, no manual adjustment between fields.
36" Flat-Running Deck Plates
Maya uses 36" deck plates designed to run flatter to the ground, optimized for their recommended 15–18° operating angle. No published hydraulic auto-adjust system with cab indicator.
Hydraulic deck plates with a cab indicator eliminate the single most common cause of in-season yield loss: operating with a mis-adjusted gap. Operators rarely stop to adjust manually between fields. An auto-displaying cab indicator closes that behavioral gap — keeping every acre harvested at the correct setting.
Oil-Bath Roller Chain with Auto-Tensioner

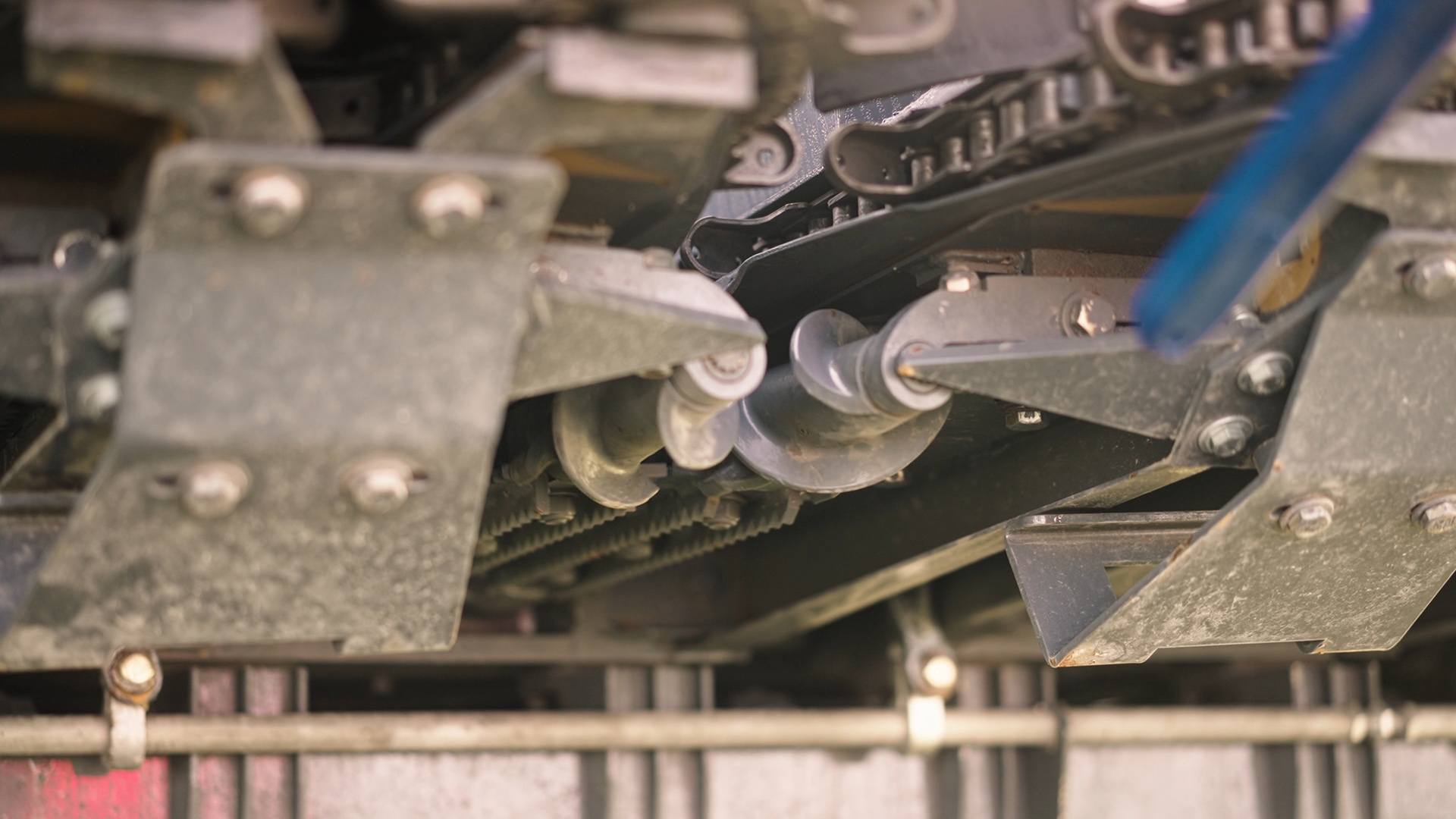

The MDD-200 uses a 60° free-rotation yoke PTO drive with ASA 80H oil-bath roller chains and an automatic tensioner. The auger runs dual independent drives with a hex shaft on spherical bearings. Each drive has a preloaded, non-adjustable safety clutch.
Endura Drive™ — Chainless Design
Drago GT's Endura Drive™ is marketed as "the first chainless design" for the auger drive, using spiral-cut gears and spiral bevel gearboxes. Innovative, but a newer design approach where long-term field data is still maturing.
Oil-bath roller chain with auto-tensioners is a proven, globally serviceable technology with decades of field validation — parts available anywhere. Drago's chainless auger drive is innovative but represents a newer design approach where dealer serviceability and long-term failure data are still maturing.
